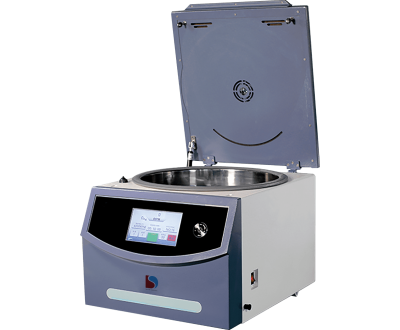

Benchtop High Speed Centrifuge BHC-5350 is small footprint and compact centrifuge of capacity from 4×750ml with maximum speed ranging 21000 rpm. Designed with lock function, self-diagnostic function, and Automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety.
Benchtop High Speed Centrifuge BHC-5350 is small footprint and compact centrifuge of capacity from 4×750ml with maximum speed ranging 21000 rpm. Designed with lock function, self-diagnostic function, and Automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety.
Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications. Features with touch screen with multi-functional knob combination parameters. Available with 15 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function. Storages up to 99 program groups, 99 use records programming space and accommodates angle, swing out rotor, Elisa plate Rotor, and Enzyme plate; Square Hanging Basket. Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications.
|
Model |
BHC-5350 |
|
Capacity |
4×750ml |
|
Max RCF |
29780×g |
|
Speed Range |
21000 rpm |
|
Noise |
≤60dB(A) |
|
;Rotor Diameter |
430 mm |
|
Revolutions/min |
±10 rpm |
|
Timer |
1min to 99h, 59min, 59s |
|
Power Consumption |
1200 W |
|
Dimension |
560×460×390 mm |
|
Packing Dimension |
637×537×484 mm |
|
Net Weight |
58 kg |
|
Electrical Requirement |
AC 220±22V 50Hz 15A |
|
Catalogue No. |
1401602002 |
|
Model |
BHC-5050 |
BHC-5150 |
BHC-5250 |
BHC-5350 |
|
Capacity |
12×5ml |
4×100ml |
4×250ml |
4×750ml |
|
Max RCF |
20625×g |
23110×g |
30185×g |
29780×g |
|
Speed Range |
16500 rpm |
18500 rpm |
20000 rpm |
21000 rpm |
|
Noise |
≤62dB(A) |
≤60dB(A) |
||
|
;Rotor Diameter |
200 mm |
320 mm |
380 mm |
430 mm |
|
Revolutions/min |
±10 rpm |
|||
|
Timer |
1min to 99h, 59min, 59s |
|||
|
Power Consumption |
500 W |
550 W |
750 W |
1200 W |
|
Dimension |
335×270×245 mm |
515×400×330 mm |
540×430×395 mm |
560×460×390 mm |
|
Packing Dimension |
412×347×332 mm |
570×450×390 mm |
627×502×442 mm |
637×537×484 mm |
|
Net Weight |
15 kg |
35 kg |
45 kg |
58 kg |
|
Electrical Requirement |
AC 220±22V 50Hz 15A |
|||
|
Catalogue No. |
1401600502 |
1401601002 |
1401601502 |
1401602002 |
