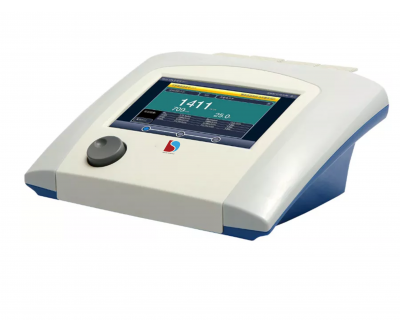

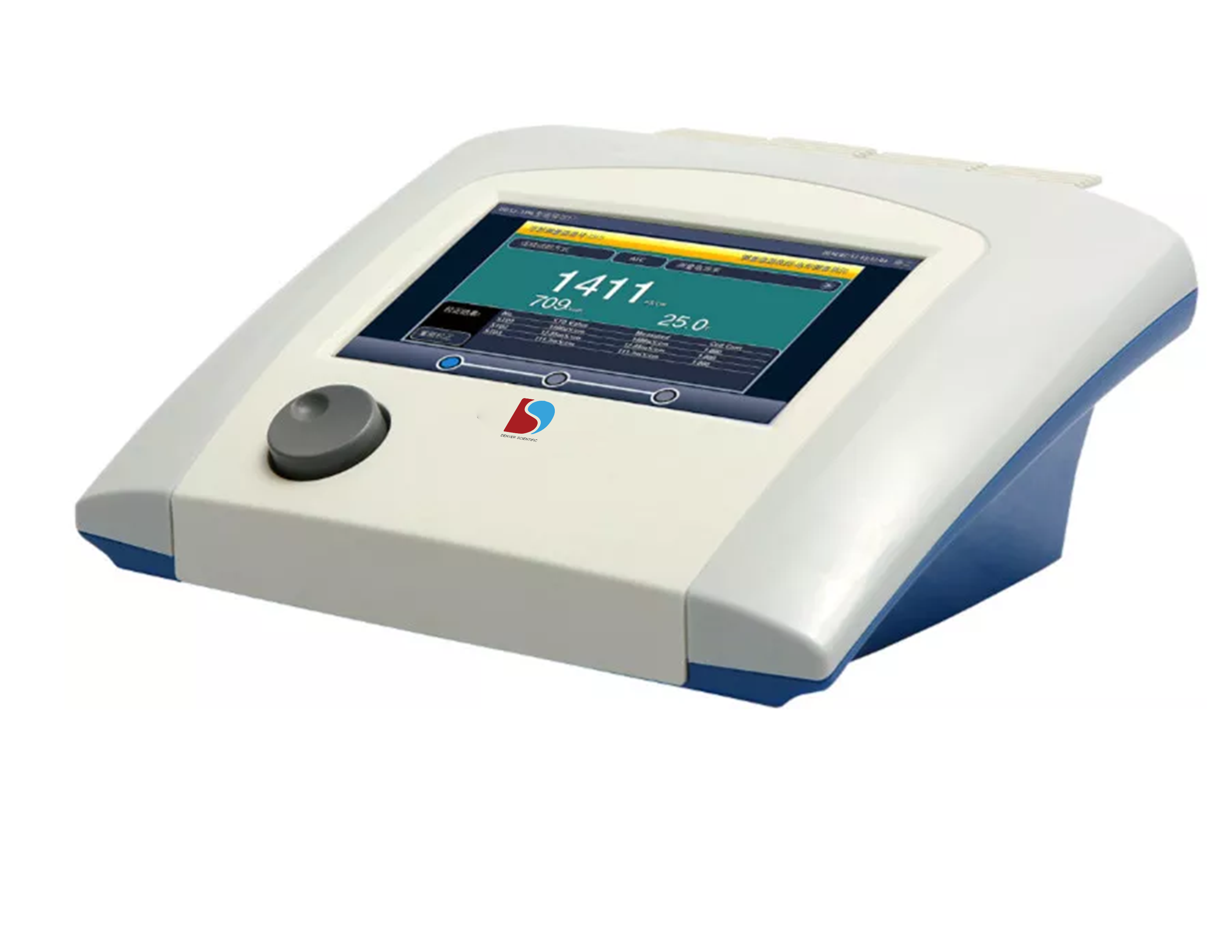

Portable Ion Meter PIM-220 is a multi-used, strong and accurate instrument. The easy features operation menu with easy to understand prompts and electrode/standard error checking.
It has feature many advanced options, such as programmable stability measures, programmable standardization reading delay times, multi-channel operation, fast reading update rates of twice per second for all channels, programmable alarms, storage programmable data up to 500 to 1400 data points and RS232, USB serial interface for controlling the meter and obtaining data. The meter operating code can easily be upgraded as new features are made available.
|
Model |
PIM-220 |
|
Display |
Digital Display |
|
Ion Concentration Range |
0 to 1999.0 |
|
Ion Concentration Resolution |
- |
|
Ion Concentration Accuracy |
±0.5 % |
|
pH/p X Range |
pX: -2 to 20 |
|
pH/p X Resolution |
0.001 |
|
pH/ p X Accuracy |
±0.002 |
|
mV Range |
±1999.99 |
|
mV Resolution |
0.1 |
|
mV Accuracy |
±0.03 %FS |
|
Temperature Range |
-5 to 110℃ |
|
Temperature Resolution |
0.1℃ |
|
Temperature Accuracy |
±0.2℃ |
|
Calibration |
5 point |
|
Parameter |
pX/ Ion concentration /mV/ Temperature |
|
Certification |
CE |
|
Ion Mode |
H+, Ag+, Na+, K+, NH4+,Cl-, F-, NO3-, |
|
Temperature Compensation |
Manual/Auto: 0.0 to 60.0℃ |
|
Storage |
1400 sets |
|
Interface |
USB |
|
Dimensions |
280×215×92 mm |
|
Weight |
5 Kg |
|
Electrical Requirement |
Universal power adapter (9V DC, 804mA) |
|
Catalogue No. |
7102515-04 |
|
Model |
PIM-210 |
PIM-220 |
|
Display |
7- inch Touch screen |
Digital Display |
|
Ion Concentration Range |
0 to 19990 (ug/L, mg/L, g/L,mol/L, mmol/L ) |
0 to 1999.0 |
|
Ion Concentration Resolution |
4 significant figures |
- |
|
Ion Concentration Accuracy |
±0.3 % |
±0.5 % |
|
pH/p X Range |
pH: -2 to 20, pX: 0 to 14 |
pX: -2 to 20 |
|
pH/p X Resolution |
0.001 |
|
|
pH/ p X Accuracy |
±0.002 |
|
|
mV Range |
-1999.99 to 1999.99 |
±1999.99 |
|
mV Resolution |
0.01 |
0.1 |
|
mV Accuracy |
±0.03 %FS |
±0.03 %FS |
|
Temperature Range |
-5 to 130℃ |
-5 to 110℃ |
|
Temperature Resolution |
0.1℃ |
|
|
Temperature Accuracy |
±0.1℃ |
±0.2℃ |
|
Calibration |
5 point |
|
|
Parameter |
pX/Ion concentration/mV/ Temperature |
pX/ Ion concentration /mV/ Temperature |
|
Certification |
CE |
|
|
Ion Mode |
H+,Ag+,Na+,K+,NH4+,Cl-,F- etc. |
H+, Ag+, Na+, K+, NH4+,Cl-, F-, NO3-, |
|
Temperature Compensation |
- |
Manual/Auto: 0.0 to 60.0℃ |
|
Storage |
1000 sets |
1400 sets |
|
Interface |
RS232, USB |
USB |
|
Dimensions |
280x280x130 mm |
280×215×92 mm |
|
Weight |
2. 5 Kg |
5 Kg |
|
Electrical Requirement |
- |
Universal power adapter (9V DC, 804mA) |
|
Catalogue No. |
7102510-04 |
7102515-04 |
