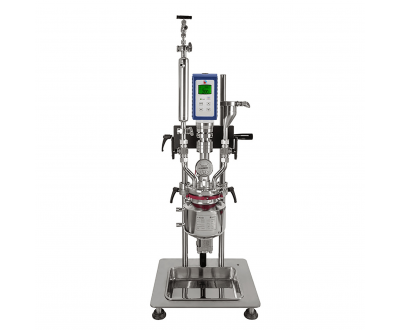

Large Scale Pressure Reactor PR-4300 allows excellent control of high-pressure reactions up to 100 bar. The system is ideal for universal experiment reactions, where elevated pressures are required. Automating your pressure reactions could not be easier
Large Scale Pressure Reactor PR-4300 allows excellent control of high-pressure reactions up to 100 bar. The system is ideal for universal experiment reactions, where elevated pressures are required. Automating your pressure reactions could not be easier.
We offer Overhead stirrer with magnetic clutch and stirrer drives of different performance classes. Constructed with SUS 316L stainless steel and sophisticated with or with bottom outlet and the reactor capacities 300 ml. Options include the internal heating/cooling coil and thermocouple. We provide safety by setting 100 bar maximum pressure burst disc and maximum temperature cut-outs to ensure that your reaction does not fall outside suitable factors.
|
Model |
PR-4300 |
|
Material |
SUS 316L |
|
Reactor Volume |
300 ml |
|
Temperature Range |
300℃ |
|
Pressure Range |
100 bar |
|
No. of Tube Connection |
8 mm |
|
Ports (total) |
7 |
|
Ports (free) |
3 |
|
Reactor Dimension |
68x108 mm |
|
Reactor Weight |
4 kg |
|
Catalogue No. |
2302005-04 |
|
Model |
PR-4300 |
PR-4500 |
PR-4700 |
PR-4900 |
|
Material |
SUS 316L |
|||
|
Reactor Volume |
300 ml |
500 ml |
1,000 ml |
2,000 ml |
|
Temperature Range |
300℃ |
250℃ |
300℃ |
250℃ |
|
Pressure Range |
100 bar |
|||
|
No. of Tube Connection |
8 mm |
|||
|
Ports (total) |
7 |
|||
|
Ports (free) |
3 |
|||
|
Reactor Dimension |
68x108 mm |
68x175 mm |
90x193 mm |
90x352 mm |
|
Reactor Weight |
4 kg |
6 kg |
11 kg |
16 kg |
|
Catalogue No. |
2302005-04 |
2302010-04 |
2302015-04 |
2302020-04 |
