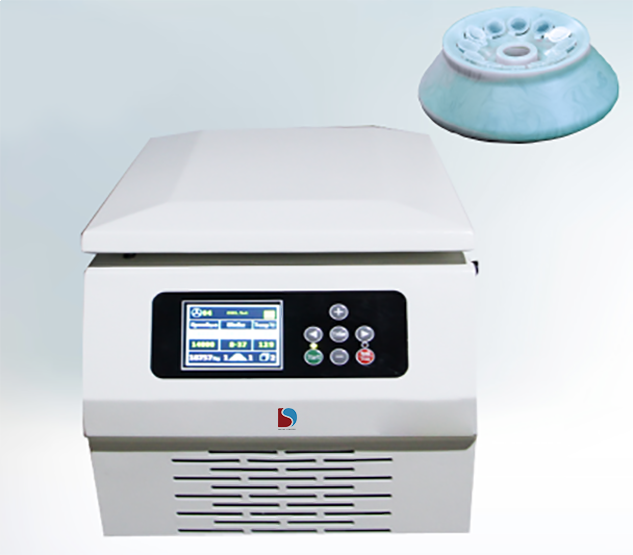

MicrocentrifugeDMC-5160R design with interchangeable rotors for procedure with 1.5 ml microtubes and 0.5 ml PCR strip tubes with adjustable timing and RPM during operation anytime, as well as to check centrifugal force without stopping the machine.
MicrocentrifugeDMC-5160R design with interchangeable rotors for procedure with 1.5 ml microtubes and 0.5 ml PCR strip tubes with adjustable timing and RPM during operation anytime, as well as to check centrifugal force without stopping the machine.
TheDMC-5160R use in different applications PCR laboratories, clinical research and molecular biology and general cell culture applications. For safety we introduced electronic door lock. Available different accessories which can accommodate 10/12×5ml tube strips.
|
Model |
DMC-5160R |
|
Capacity |
10/12×5ml |
|
Max RCF |
18757×g |
|
Speed Range |
16000rpm |
|
Noise |
≤ 65dB（A） |
|
Rotor Diameter |
160 mm |
|
Temperature Range |
-20℃ to 40℃ |
|
Revolutions/min |
±20 rpm |
|
Temperature Accuracy |
±1.0℃ |
|
Timer |
1 to 99 min |
|
Power Consumption |
400 W |
|
Internal Dimension |
510X280X270 mm |
|
External Dimension |
610X380X370 mm |
|
Net Weight |
40 kg |
|
Gross Weight |
45 kg |
|
Electrical Requirement |
AC 220±22V 50/60Hz 10A |
|
Catalogue No. |
140702002
|
|
Model |
DMC-5100 |
DMC-5160 |
DMC-5170 |
DMC-5160R |
|
Capacity |
24×1.5ml |
10/12×5ml |
10×5ml |
10/12×5ml |
|
Max RCF |
18757×g |
18757×g |
19515×g |
18757×g |
|
Speed Range |
16000rpm |
16500rpm |
17000rpm |
16000rpm |
|
Noise |
< 60dB（A) |
≤ 65dB（A） |
||
|
Rotor Diameter |
160 mm |
200 mm |
200 mm |
160 mm |
|
Temperature Range |
- |
-20℃ to 40℃ |
||
|
Revolutions/min |
±20 rpm |
|||
|
Temperature Accuracy |
- |
±1.0℃ |
||
|
Timer |
1 to 99 min |
|||
|
Power Consumption |
150 W |
250 W |
250 W |
400 W |
|
Internal Dimension |
315×270×240 mm |
315×270×240 mm |
315×270×240 mm |
510X280X270 mm |
|
External Dimension |
415×370×315 mm |
380×350×300 mm |
380×350×300 |
610X380X370 mm |
|
Net Weight |
10kg |
11kg |
11kg |
40 kg |
|
Gross Weight |
12kg |
13kg |
15kg |
45 kg |
|
Electrical Requirement |
AC 220±22V 50/60Hz 3A |
AC 220±22V 50/60Hz 10A |
||
|
Catalogue No. |
140700502 |
140701002 |
140701502 |
140702002 |
