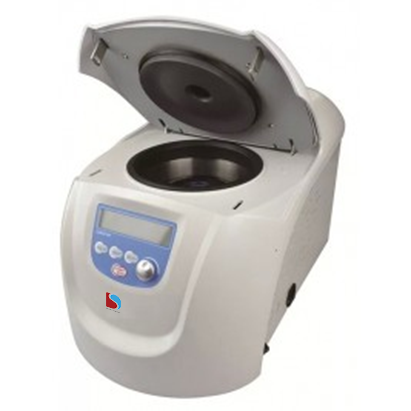

MicrocentrifugeDMC-6024 is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high end research applications i.e. sedimentation of cells and viruses, separation of sub-cellular organelles, isolation of macromolecules such as DNA,RNA, proteins or lipids.
|
Model |
DMC-6024 |
|
Max. capacity |
5mL×18;0.2mL/0.5mL/1.5mL/ 2mL×24;0.5mL×36; PCR8×4 |
|
Max. speed rpm (Angle rotor) |
15000rpm (200-15000rpm), increment:10rpm |
|
Max. RCF[×g] |
21380×g, increment:10×g |
|
Noise level at max. speed(approximately) |
≤58 |
|
Revolution/rpm |
±20 rpm |
|
Temperature Range |
N/A |
|
Run Time |
30sec to 99min-HOLD (Continuous operation) |
|
Driving Motor |
Brushless DC motor |
|
Dimensions |
280×364×266 mm |
|
Weight |
12kg |
|
Electrical Requirements |
220V/50Hz |
|
Catalogue No. |
140750502 |
|
Model |
DMC-6024 |
DMC-6024R |
DMC-6124 |
|||
|
Max. capacity |
5mL×18;0.2mL/0.5mL/1.5mL/ 2mL×24;0.5mL×36; PCR8×4 |
24 capillary tubes and 2ml×24 rotor |
||||
|
Max. speed rpm (Angle rotor) |
15000rpm (200-15000rpm), increment:10rpm |
15000rpm (200-15000rpm), increment:10rpm |
200 to 14000 rpm |
|||
|
Max. RCF[×g] |
21380×g, increment:10×g |
21380×g, increment:10×g |
18620×g |
|||
|
Noise level at max. speed(approximately) |
≤58 |
≤56 |
||||
|
Revolution/rpm |
±20 rpm |
|||||
|
Temperature Range |
N/A |
-20 to 40 °C |
N/A |
|||
|
Run Time |
30sec to 99min-HOLD (Continuous operation) |
|||||
|
Driving Motor |
Brushless DC motor |
|||||
|
Dimensions |
280×364×266 mm |
338×580×324 mm |
280×364×274 mm |
|||
|
Weight |
12kg |
30kg |
10 kg |
|||
|
Electrical Requirements |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
|
Catalogue No. |
140750501 |
140750502 |
140751001 |
140751002 |
140751501 |
140751502 |
