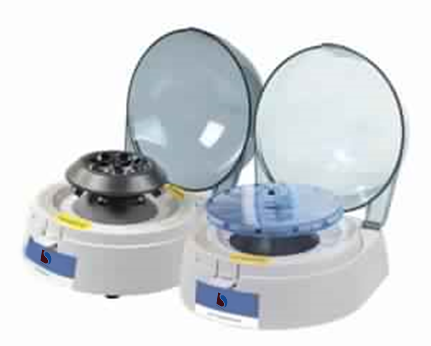

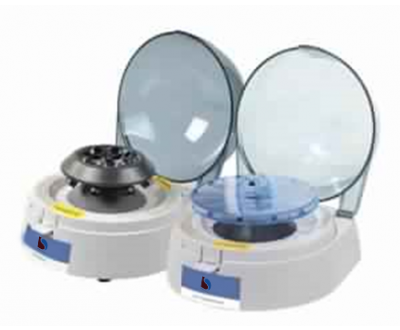

Mini Centrifuges DM-340 fully automatic instrument, allows considerable time saving, best for the hematocrit, medical and laboratory and research applications. Equipped with shock absorber to minimize vibration during working and provide flexibility in your laboratory.
Mini Centrifuges DM-340 fully automatic instrument, allows considerable time saving, best for the hematocrit, medical and laboratory and research applications. Equipped with shock absorber to minimize vibration during working and provide flexibility in your laboratory.
Spins samples volume up to 1.5ml(2) mlx8 with maximum speed 10000 rpm and available with acceleration and for deceleration profile with high efficiency. Compatible with low working noise with not more than 49 dB. Replacing and changing rotor by simply lift the rotor out of the shaft without breaking your back or damaging the centrifuge. Ideal for microfiltration and rapid spinning accelerates and decelerates within couples of minutes to ensure excellent consequences of sample separation.
|
Model |
DM-340 |
|
Capacity |
1.5ml(2)mlx8 |
|
Max RCF |
6652xg |
|
Speed Range |
10000 rpm |
|
Rotor |
Rotor1 to Rotor 5 |
|
Materials |
Cover: PC; Main frame: ABS; Absorber: NBR; Rotor: ABS; Adaptor: PP |
|
Speed Control |
Automatic/Constant speed |
|
Driving System |
Direct Drive/Vibration |
|
Acceleration/deceleration time |
closed: within 15 seconds and opened: within 3 seconds |
|
Dimension |
2350x1650x160 mm |
|
Weight |
1.2 kg |
|
Electrical Requirement |
264V/60HZ |
|
Catalogue No. |
1401520-02 |
|
Model |
DM-310 |
DM-320 |
DM-330 |
DM-340 |
DM-350 |
DM-360 |
||||||
|
Capacity |
1.5ml(2)mlx8 |
D1.5MMX40MM |
||||||||||
|
Max RCF |
810 to 3260xg |
6652xg |
810 to 6652xg |
8550xg |
||||||||
|
Speed Range |
4000 rpm |
7200 rpm |
4000 rpm to 7200 rpm |
10000 rpm |
4000/72000/10000 rpm |
12000 rpm |
||||||
|
Noise |
47dB/49dB |
|||||||||||
|
Rotor |
Rotor1 to Rotor 5 |
Rotor6 |
||||||||||
|
Materials |
Cover: PC; Main frame: ABS; Absorber: NBR; Rotor: ABS; Adaptor: PP |
|||||||||||
|
Speed Control |
Automatic/Constant speed |
|||||||||||
|
Driving System |
Direct Drive/Vibration |
|||||||||||
|
Acceleration/deceleration time |
closed: within 15 seconds and opened: within 3 seconds |
|||||||||||
|
Dimension |
2350x1650x160 mm |
|||||||||||
|
Weight |
1.2 kg |
|||||||||||
|
Electrical Requirement |
AC85V/50Hz |
264V/60HZ |
AC85V/50Hz |
264V/60HZ |
AC85V/50Hz |
264V/60HZ |
AC85V/50Hz |
264V/60HZ |
AC85V/50Hz |
264V/60HZ |
AC85V/50Hz |
264V/60HZ |
|
Catalogue No. |
1401505-04 |
1401505-02 |
1401510-04 |
1401510-02 |
1401515-04 |
1401515-02 |
1401520-04 |
1401520-02 |
1401525-04 |
1401525-02 |
1401530-04 |
1401530-02 |
