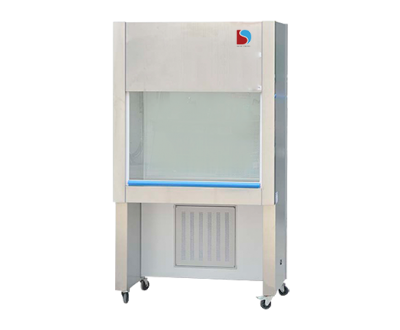

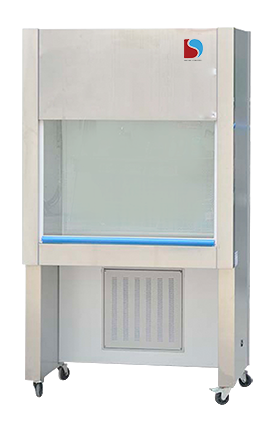

Vertical & Horizontal Laminar Flow Cabinets LDC-140

Vertical & Horizontal Laminar Flow Cabinets LDC-140

Vertical & Horizontal Laminar Flow Cabinets LDC-140 is a Vertical and horizontal air laminar flow cabinet. Easily chosen by a simple mechanical operation and available with two configurations: single-single, double-single vertical and horizontal cabinet configuration for the application mainly in medical treatment, chemical experiment, electron, precise machinery, instrument, apparatus, medical preparation, operating room, foodstuff, drinks, daily-use cosmetic, stock raising and aviation.


Delivery Time:
Catalog No 380600502
Description

Vertical & Horizontal Laminar Flow Cabinets LDC-140 is a Vertical and horizontal air laminar flow cabinet. Easily chosen by a simple mechanical operation and available with two configurations: single-single, double-single vertical and horizontal cabinet configuration for the application mainly in medical treatment, chemical experiment, electron, precise machinery, instrument, apparatus, medical preparation, operating room, foodstuff, drinks, daily-use cosmetic, stock raising and aviation.

The vertical-horizontal Laminar intense clean bench is a general-purpose workbench, with clean air flow flows from the top to the bottom in the vertical direction. Accommodates maximum no. of colony rate: ≤0.5per utensil hour (90mm utensil) and air velocity 0.25-0.45m/s. features with HEPA Filter, UV lamp, sliding glass door, ventilating slot, color plate, and LED source.

Deliver best and economic free environment for inflexible contamination requirements on pharmaceutical, food industries, biotech and much more Industries. Our flow cabinet enclosed on the sides and kept under constant pressure to prevent contamination

Specifications

Model

LDC-140

Type

Single-Single  Vertical and Horizontal

Air Supply

Vertical and Horizontal Air

Cleanliness

Class 100

Velocity

0.25 to 0.45m/s

No. of colony

≤0.5per utensil.hour(90mm utensil)

Noise

≤62Db

Illumination

≥300LX

Light

LED

HEPA filter No. and Size

865x600x38x1/865x484x38x1

Power Consumption

300 W

Certification

ISO-9001

Working Area

870x500x620 mm

Overall Dimension

1050x760x1800 mm

Weight

150 kg

Electrical Requirement

AC, 220 V/50Hz

Catalogue No.

380600502

Technical Data

Model

LDC-140

LDC-160

Type

Single-Single  Vertical and Horizontal

Double-Single Vertical and Horizontal

Air Supply

Vertical and Horizontal Air

Cleanliness

Class 100

Velocity

0.25 to 0.45m/s

No. of colony

≤0.5per utensil.hour(90mm utensil)

Noise

≤62Db

Illumination

≥300LX

Light

LED

HEPA filter No. and Size

865x600x38x1/865x484x38x1

1320x600x38/1320x484x38

Power Consumption

300 W

800 W

Certification

ISO-9001

Working Area

870x500x620 mm

1360x500x620 mm

Overall Dimension

1050x760x1800 mm

1600x760x1800 mm

Weight

150 kg

300 kg

Electrical Requirement

AC, 220 V/50Hz

Catalogue No.

380600502

380601002
